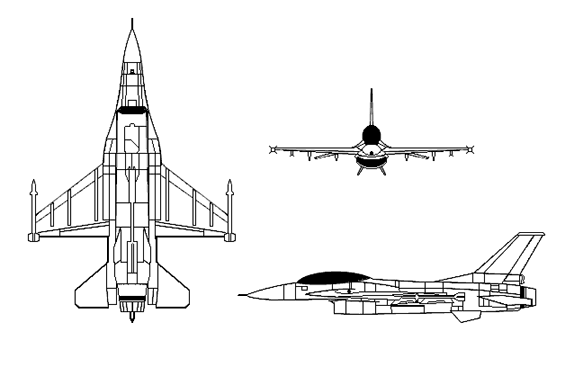

F-16C/D Falcon
Specifications
(F-16C Block 30) General
characteristics * Crew: 1 * Length: 49 ft 5 in (14.8 m) * Wingspan: 32 ft 8 in (9.8 m) * Height: 16 ft (4.8 m) * Wing area: 300 ft² (27.87 m²) * Airfoil: NACA 64A204 root and tip * Empty weight: 18,200 lb (8,270 kg) * Loaded weight: 26,500 lb (12,000 kg) * Max takeoff weight: 42,300 lb (19,200 kg) * Powerplant: 1× Pratt & Whitney
F100-PW-220 afterburning turbofan o Dry thrust: 14,590 lbf (64.9 kN) o Thrust with afterburner: 23,770 lbf
(105.7 kN) * Alternate powerplant: 1× General Electric
F110-GE-100 afterburning turbofan o Dry thrust: 17,155 lbf (76.3 kN) o Thrust with afterburner: 28,600 lbf
(128.9 kN) Performance * Maximum speed: o At sea level: Mach 1.2 (915 mph,
1,460 km/h) o At altitude: Mach 2+ (1,500 mph,
2,414 km/h) * Combat radius: 340 NM (295 mi, 550 km) on
a hi-lo-hi mission with six 1,000 lb (450 kg) bombs * Ferry range: >2,100 NM (2,420 NM,
3,900 km) * Service ceiling >50,000 ft (15,239 m) * Rate of climb: 50,000 ft/min (254 m/s) * Wing loading: 88.2 lb/ft² (431 kg/m²) * Thrust/weight: For F100 engine: 0.898,
For F110: 1.095 Units:
308th Fighter Squadron  |
Armament * Guns: 1× 20 mm (0.787 in) M61 Vulcan
gatling gun, 511 rounds * Rockets: 2¾ in (70 mm) CRV7 * Missiles: o Air-to-air missiles: + 2× AIM-7 Sparrow or + 6× AIM-9 Sidewinder or + 6× IRIS-T or + 6× AIM-120 AMRAAM or + 6× Python-4 o Air-to-ground missiles: + 6× AGM-45 Shrike or + 6× AGM-65 Maverick or + 4× AGM-88 HARM o Anti-ship missiles: + 2× AGM-84 Harpoon or + 4× AGM-119 Penguin * Bombs: o 2× CBU-87 Combined Effects Munition o 2× CBU-89 Gator mine o 2× CBU-97 Sensor Fuzed Weapon o Wind Corrected Munitions Dispenser
capable o 4× GBU-10 Paveway II o 6× GBU-12 Paveway II o 6× Paveway-series laser-guided
bombs o 4× JDAM o 4× Mark 84 general-purpose bombs o 8× Mark 83 GP bombs o 12× Mark 82 GP bombs o B61 nuclear bomb |
