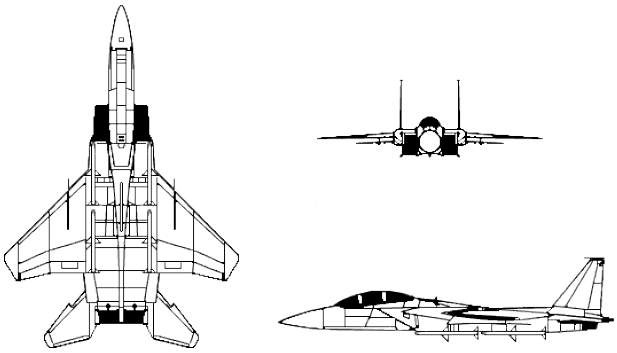

F-15C/D Eagle & F-15E Strike Eagle
Specifications
(F-15C Eagle) General
characteristics * Crew: 1 * Length: 63 ft 9 in (19.43 m) * Wingspan: 42 ft 10 in (13.05 m) * Height: 18 ft 6 in (5.63 m) * Wing area: 608 ft² (56.5 m²) * Airfoil: NACA 64A006.6 root, NACA 64A203
tip * Empty weight: 28,000 lb (12,700 kg) * Loaded weight: 44,500 lb (20,200 kg) * Max takeoff weight: 68,000 lb (30,845 kg) * Powerplant: 2× Pratt & Whitney
F100-100,-220 or -229 afterburning turbofans o Dry thrust: 17,450 lbf (77.62 kN)
each o Thrust with afterburner: 25,000 lbf
for -220; 29,000 lbf for -229 (111.2 kN for -220; 129.0 kN for -229) each Performance * Maximum speed: o High altitude: Mach 2.5+ (1,650
mph, 2,660 km/h) o Low altitude: Mach 1.2 (900 mph,
1,450 km/h) * Combat radius: 1,061 nmi (1,222 mi, 1,967
km) for interdiction mission * Ferry range: 3,450 mi (3,000 nmi, 5,550
km) with external conformal fuel tanks * Service ceiling 65,000 ft (20,000 m) * Rate of climb: >50,000 ft/min (254
m/s) * Wing loading: 73.1 lb/ft² (358 kg/m²) * Thrust/weight: 1.12 (-220), 1.30 (-229) Specifications
(F-15E Strike Eagle) General
characteristics * Crew: 2 * Length: 63.8 ft (19.4 m) * Wingspan: 42.8 ft (13.05 m) * Height: 18.5 ft (5.63 m) * Wing area: 608 ft² (56.5 m²) * Airfoil: NACA 64A006.6 root, NACA 64A203
tip * Empty weight: 31,700 lb (14,300 kg) * Max takeoff weight: 81,000 lb (36,700 kg) * Powerplant: 2× Pratt & Whitney
F100-229 afterburning turbofans, 29,000 lbf (129 kN) each Performance * Maximum speed: Mach 2.5+ (1,650+ mph,
2,660+ km/h) * Ferry range: 2,400 mi (2,100 nmi, 3,900
km) with conformal fuel tank and three external fuel tanks * Service ceiling 60,000 ft (18,200 m) * Rate of climb: 50,000+ ft/min (254+ m/s) Units:
389th Fighter Squadron  |
Armament * Guns: 1× internally mounted 20 mm (0.787
in) M61A1 gatling gun, 940 rounds * Hardpoints: four wing, four fuselage, two
wing stations, centerline station, optional fuselage pylons with a capacity of 16,000 lb (7,300 kg), * Missiles: o AIM-7F Sparrow o AIM-120 AMRAAM o AIM-9 Sidewinders Armament * Guns: 1× 20 mm (0.787 in) M61 Vulcan
gatling gun, 510 rounds of either M-56 or PGU-28 ammunition * Hardpoints: 2 wing pylons, fuselage
pylons, bomb racks on CFTs with a capacity of 24,250 lb (11,000 kg) external fuel and ordnance, * Missiles: 2xAIM-9M Sidewinder, 2xAIM-120
AMRAAM, and o Up to 4 AIM-7M Sparrow or 4
additional AIM-120 AMRAAM o Up to 6 AGM-65 Maverick o AGM-130 o AGM-84 Harpoon o AGM-84K SLAM-ER o AGM-154 JSOW o AGM-158 JASSM * Bombs: o B61 nuclear bomb o Mark 82 bomb o Mark 84 bomb o CBU-87 CEM o CBU-89 Gator o CBU-97 SFW o CBU-103 CEM o CBU-104 Gator o CBU-105 SFW o GBU-10 Paveway II o GBU-12 Paveway II o GBU-15 o GBU-24 Paveway III o GBU-27 Paveway III o GBU-28 o GBU-31 o GBU-38 o GBU-39 Small Diameter Bomb * Radar: o Raytheon AN/APG-63 or AN/APG-70 or + Although several F-15C
aircraft were produced with APG-70 radar, all have been retrofitted to the AN/APG-63(V)1 configuration o Raytheon AN/APG-63(V)1 or o Raytheon AN/APG-63(V)2 Active Electronically
Scanned Array (AESA) or o Raytheon AN/APG-63(V)3 Active
Electronically Scanned Array (AESA) + Both
active AF and ANG F-15Cs will receive another (up to) 48 V3 units between
2009-2015, over the existing 19
aircraft. * Countermeasures: o AN/APX-76 or AN/APX-119 Identify
Friend/Foe (IFF) interrogator o Magnavox AN/ALQ-128 Electronic
Warfare Warning Set (EWWS) -part of Tactical Electronic
Warfare Systems (TEWS) o Loral AN/ALR-56 Radar Warning
Receiver (RWR)-part of Tactical Electronic Warfare Systems (TEWS) o Northrop ALQ-135 Internal
Countermeasures System (ICS) - part of Tactical Electronic Warfare Systems (TEWS) o AN/ALE-45 chaff/flare dispensers * Others: o Joint Helmet Mounted Cueing System |
